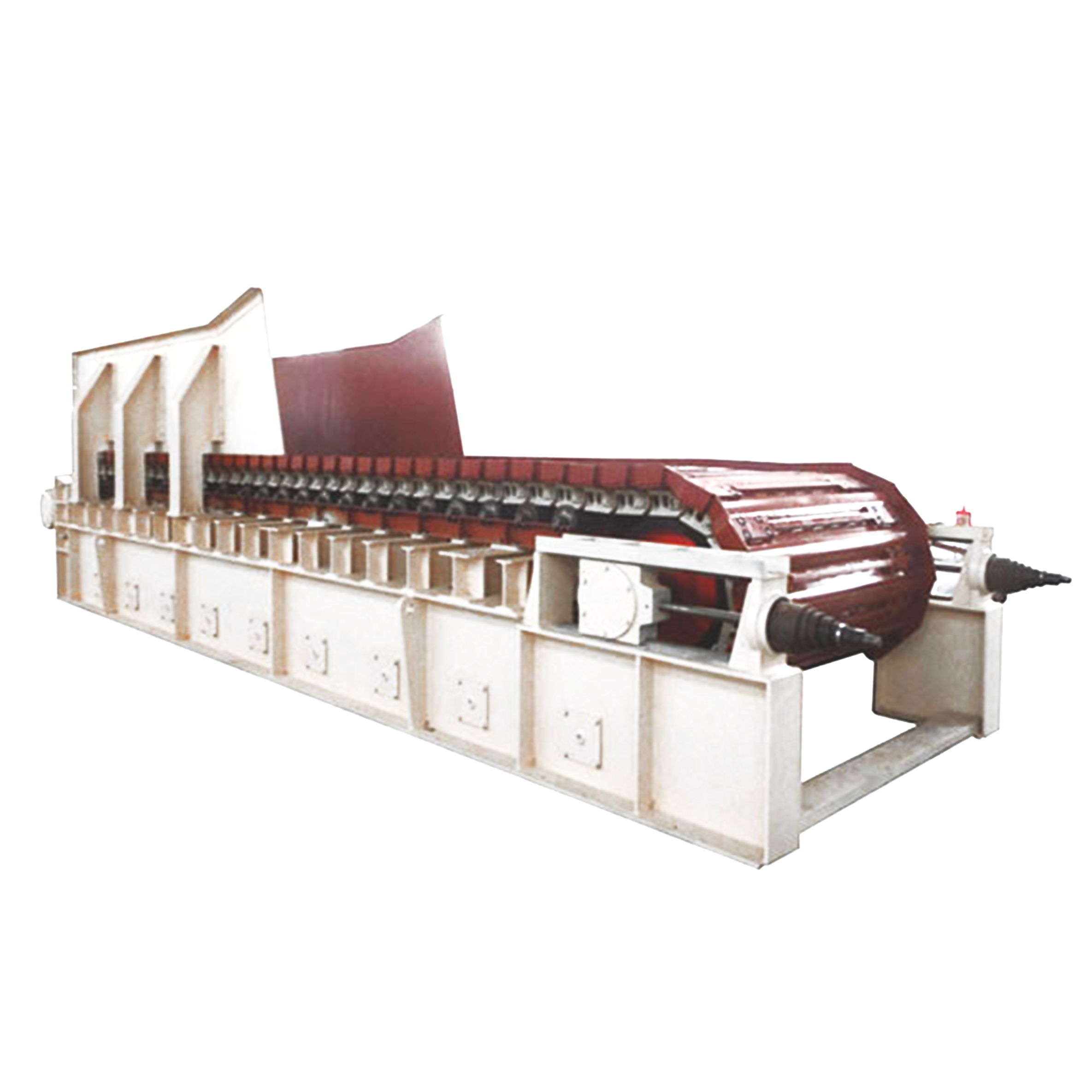

Apron feeder suitable for feeding widely used in the process of mining, cement, chemical, chemical and other industry . It is reliable in the tough environment such as high temperatuere and high humidity and suitable for loose ,massive . Apron feeder is divided into three type : Light-duty, Medium-duty, Heavy-dutyfeeder according to capacity of transportation.
Benefits
• Well-distrbuted;
• Strong power;
• Good rigidity,high strength;
• Alloy made,high wear resistance.
Specifications
| WBW SERIES | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Width of chain plate (mm) | Distance of headand tail shafts (mm) | Speed (m/s) | Feed size (mm） | Capacity (t/h) | Power (kW) | Overall Dimension L×W×H (mm) | Weight (t) |
| WBW100 | 1000 | 6000 | 0.01-0.1 | ≤500 | 80-160 | 11 | 86200×4960×1600 | 15 |
| WBW120 | 1200 | 11000 | 0.01-0.1 | ≤600 | 50-100 | 15 | 8620×5240×1950 | 23.5 |
| WBW125 | 1250 | 6000 | 0.014-0.8 | 45-150 | 11 | 8620×5240×1950 | 18.9 | |
| WBW140 | 1400 | 16000 | 0.006-0.06 | ≤900 | 20-200 | 22 | 18310×6447×2030 | 45.9 |
| WBW150 | 1500 | 10500 | 0.006-0.06 | ≤700 | 61-610 | 22 | 12850×5594×1705 | 49.4 |
| WBW160 | 1600 | 6000 | 0.0017-0.17 | ≤800 | ≤500 | 22 | 8354×6099×2100 | 25.5 |
| WBZ160 | 1600 | 9000 | 0.01-0.07 | ≤1000 | ≤500 | 30 | 5011250×4153×2890 | 50 |
| WBZ180 | 1800 | 8000 | 0.01-0.07 | ≤1000 | ≤500 | 37 | 10250×4353×2890 | 59 |
| WBZ200 | 2000 | 9800 | 0.01-0.07 | ≤1000 | ≤700 | 45 | 12000×4553×2890 | 82 |
| WBZ220 | 2200 | 10000 | 0.01-0.07 | ≤1200 | ≤800 | 45 | 12000×4753×2890 | 85 |
| WBZ230 | 2300 | 10000 | 0.01-0.07 | ≤1500 | ≤850 | 55 | 12000×4853×2890 | 86 |
| WBZ240 | 2400 | 10000 | 0.02-0.06 | ≤1600 | 550-900 | 2×37 | 12000×4953×2890 | 95 |
| WBZ250 | 2400 | 11460 | 0.01-0.1 | ≤1800 | 100-1000 | 2×45 | 12000×5053×2890 | 105 |
| WBW180 | 1800 | 8000 | 0.022-0.046 | ≤800 | 30-320 | 45 | 10300×4295×3650 | 53 |
| WBW220 | 2200 | 10000 | 0.018-0.055 | ≤1500 | 80-160 | 11 | 12650×4495×3650 | 80.4 |
