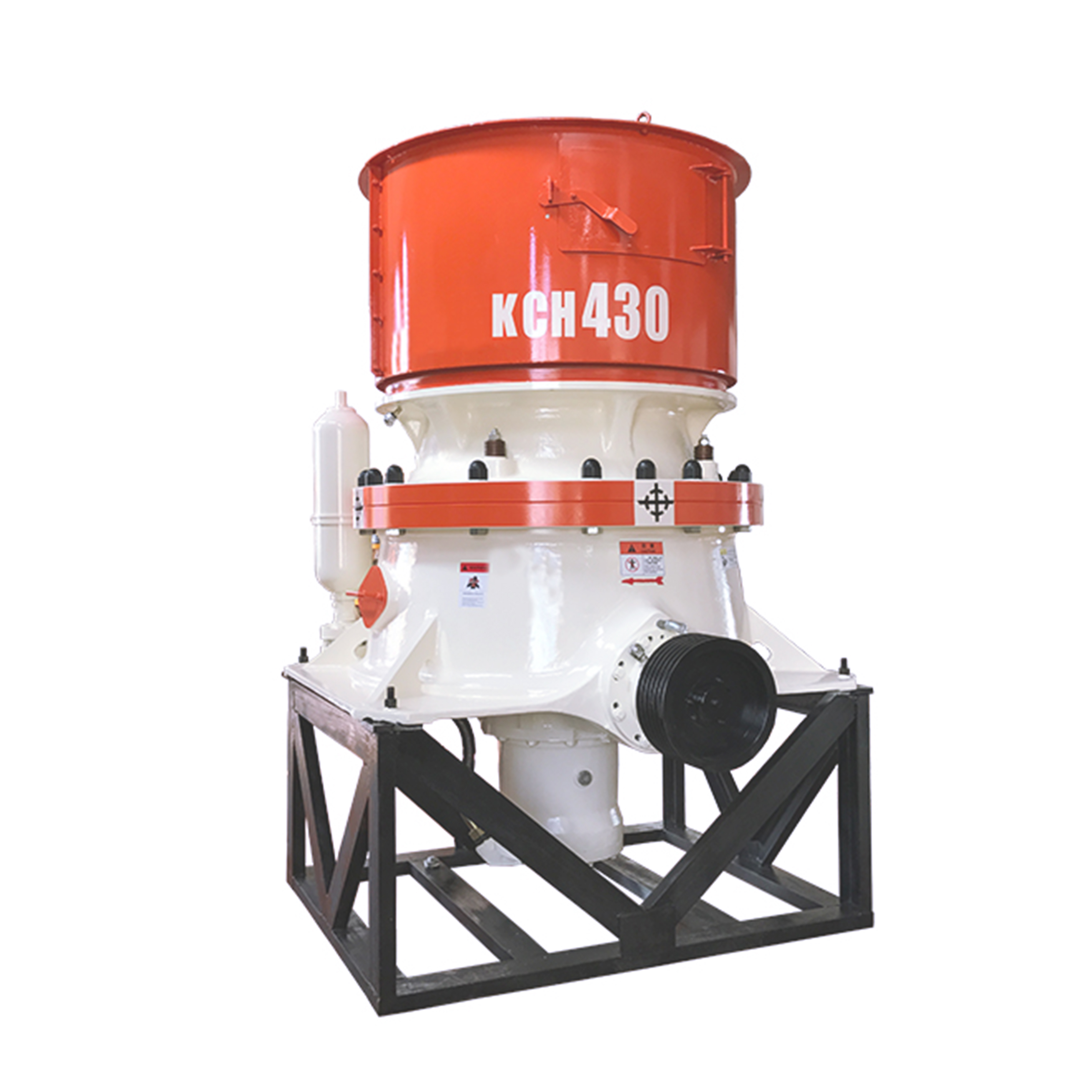

The KCS/KCH cone crusher has undergone extensive upgrades optimizing its operations at all levels. The enhancements cover the entire crusher: feed hopper, top shell, bottom shell and main shaft/head center.

Benefits

• The top shell has been reinforced to meet the great demands from the quarry and mining customers. Developed in our latest software, its brand-new design offers smoother radiuses to decrease tensions.Furthermore, the spider cap diameter has been increased to protect the spider hub.
• Increased clamping force to secure the spider cap on the top shell.
• The feed hopper is bolted with lock nuts and has a reinforced fourpiece design granting it increased stability. In addition, it has a larger and robust inspection hatch.
• The bottom shell has a fi ve-arm instead of three-arm design, providing the eccentric hub with a stronger support and achieving overall greater sturdiness.
• The inspection hatch on the bottom shell is made in PU instead of steel and includes a wear indicator.
• Cylindrical and stronger fi t between the head center and the main shaft to meet the great demands from quarry and mining customers.
• Deeper cavity in the top of the spider cap – easier for the rock to build up and protect the spider cap.
• The top shell is prepared for optional TT5 sensor (PT100 transducer)
– monitoring the temperature in the spider bearing thus offering protection of the spider bearing and preventing major failure.
