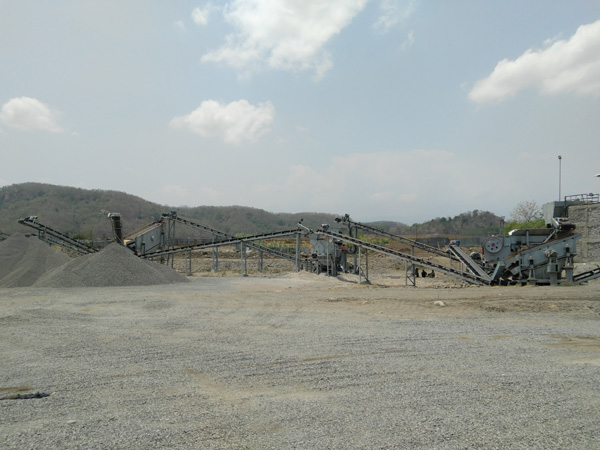

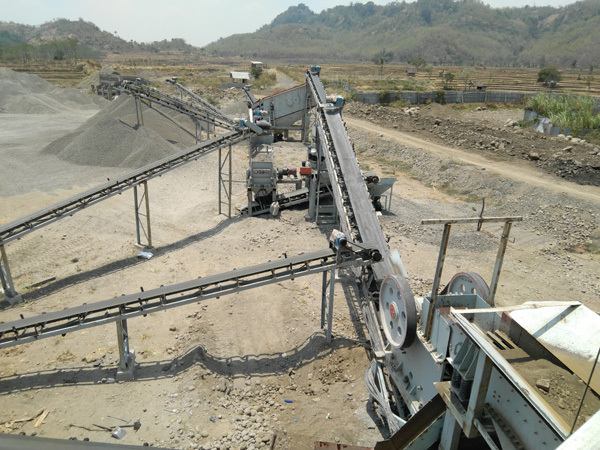

River pebbles crushing plant in Indonesia

Challenge

Are short delivery times essential for your project ?

Do you want to control your capital expense ? Is your market temporary ? Do you want to avoid civil engineering ? Are you particularly demanding as far is concerned the quality of the products?

Kinglink’s engineers have designed modular plants to meet your specific needs.

This new plant design has been developed to meet your productivity and quality expectations, regardless of the material to process. We offer you a range of eight modular standard plants meeting most of your finished product needs.

Expertise and experience

Competency is not a question of interpretation, but above all the result of expertise and experience in specific fields. The competency of Kinglink has been shaped around four fields over the course of time: the rocks and materials, the resulting applications, the associated standards and the material to shape them.

Controlled costs, Services

With their modular plant design, Kinglink can grant you reduced global investment along with fast operation setup. Moreover, this design benefits from the support offered by Kinglink to ensure customized care matched to your needs.

Choosing the right solution for your future installation: The important step when making your decision.


Solution

Crushing process

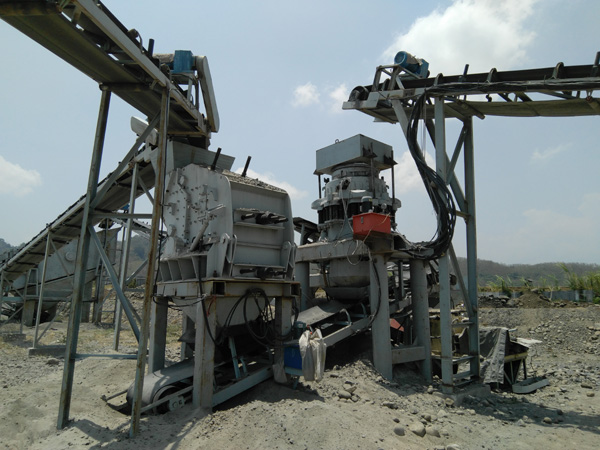

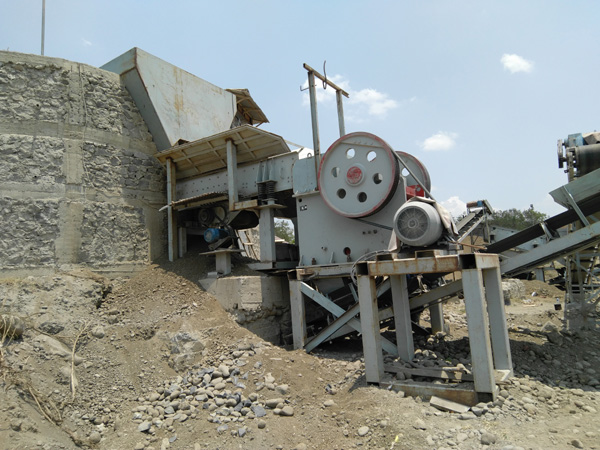

River stone, which is with less mining cost, but with high value.After crushing, screening, the natural river stone is a very good raw materialsfor many industries, like water conservancy and hydropower, high-grade highways, high speed railway, bridge, airport pavement and runway, municipal engineering, buildings. The sand crushed from river stone are widely used as aggregates of concrete. The most rational solution of river pebble for making gravel currently is crushed by jaw crusher and cone crusher, and making gravel with impact crusher for tertiary crushing.

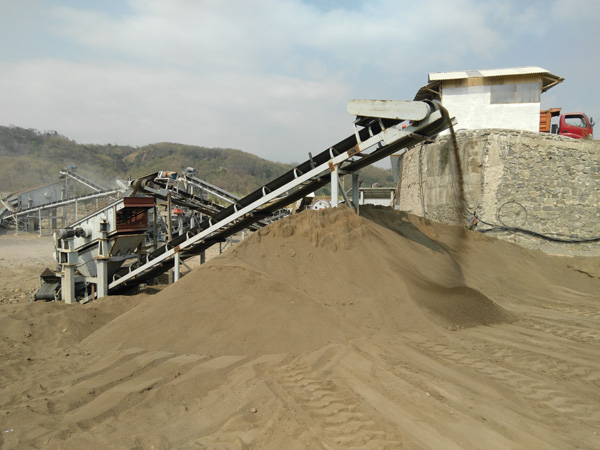

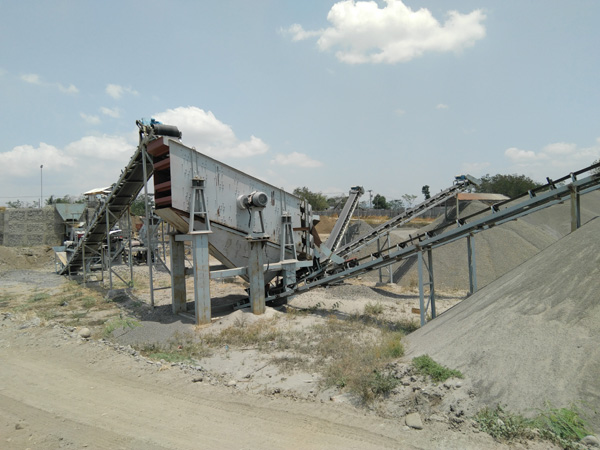

If you need to make the sands, a set of impact crusher will be needed after the cone crusher, for shaping the outputs into cubic shape. Then the outputs are transported to the vibrating screen for screening out the qualified outputs, the bigger ones will be transported back to the cone crusher or impact crusher for re-crushing.


Time – September, 2017

Input – River stone (<500mm)

Output – 0-5mm, 5-10mm, 10-20mm, 20-30mm

Capacity – 120 t/h

Location – Central Java,Indonesia

Product –   Vibrating feeder ZSW380x96,Jaw crusher PE600x900, Cone crusher KLC1000, Impact crusher PF1210,Vibrating screen 4YK1860  2YK1230.
