Granite crushing plant in Mongolia

2016-12-26 0

Granite is one kind of igneous rocks formed by the condensate of magma below the surface. The main component of granite mine is quartz, feldspar and mica. The crushed granite rocks also can be used in cement or to be filled in Dams. In addition to being used as advanced architectural decoration project and the hall ground, Granite is also the best material for sculptures.

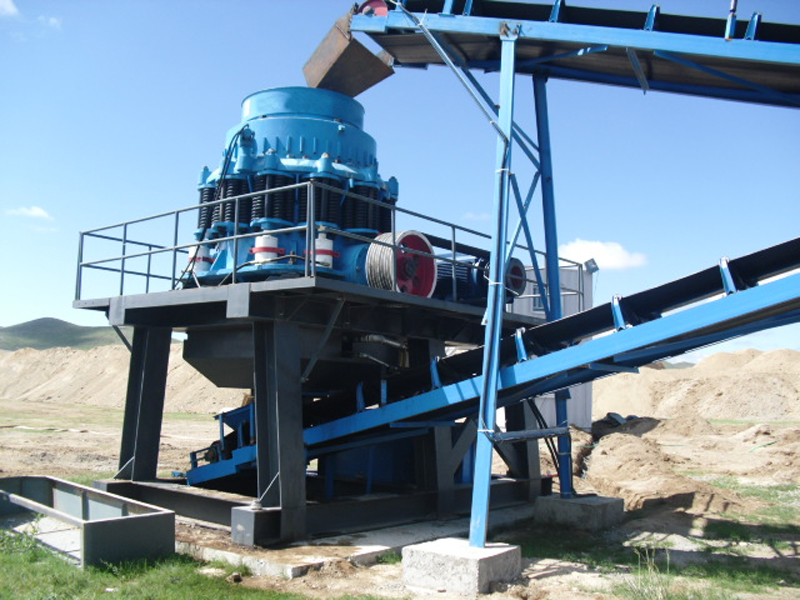

Big granite materials are fed to the jaw crusher evenly and gradually by vibrating feeder through a hopper for primary crushing. After first crushing, the material will be fed into cone crusher by belt conveyor for secondary crushing; then the crushed granite materials will be transported to vibrating screen for separating. After separating, the aggregates that can meet your requirements will be separated out as final products, while the other aggregates will be returned to cone crusher. This whole process can form a closed circuit for aggregates. Size of final products can be combined and graded according to your specific requirement.

  • Time – 2012.3

  • Input – Granite (>400mm)

  • Output – 0-3mm, 3-8mm, 8-19mm, 19-25mm.

  • Capacity – 150 t/h

  • Location – Mongolia

  • Product –   PE600*900 jaw crusher, PEX1200*250, KLC1300 cone crusher, 3YA1860 screen.
